Janisol

technologically mature products and system solutions that deliver true added value

Driven by the pioneering spirit of the founding family, Jansen creates innovations that permit the organisation to tread new paths in the areas of product development, technology and services every day.

Always keeping an eye on the success customers, Jansen bundle competences, experience, technologies and innovative power to ensure outstanding, individual solutions. Needs-orientated products that will be a great addition to your project.

Product Type:

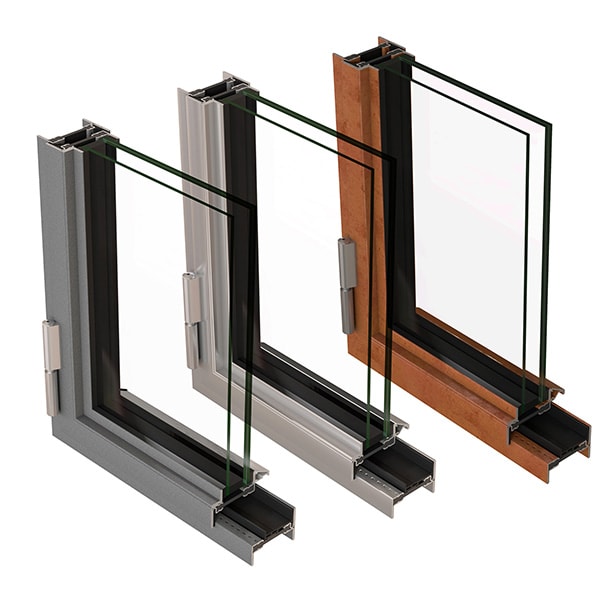

Janisol Arte

The extra-slim Janisol Arte steel profile system with face widths of a mere 25 and 40 mm has proven its worth as a thermally insulating solution for renovation projects such as monumental buildings, lofts in former industrial buildings, factory halls, warehouses, etc. Janisol Arte is the perfect system for reconstructing this highly distinctive style.

These thermally insulated profiles, with an installation depth of 60 mm, can easily accommodate common insulating glazing.

From an environmental point of view, the Janisol Arte insulated steel window frame by the Roof & Facade Technology department of ODS b.v. is one of the best options out there, which is why it has deservedly been granted the DUBOkeur® label.



Product Type:

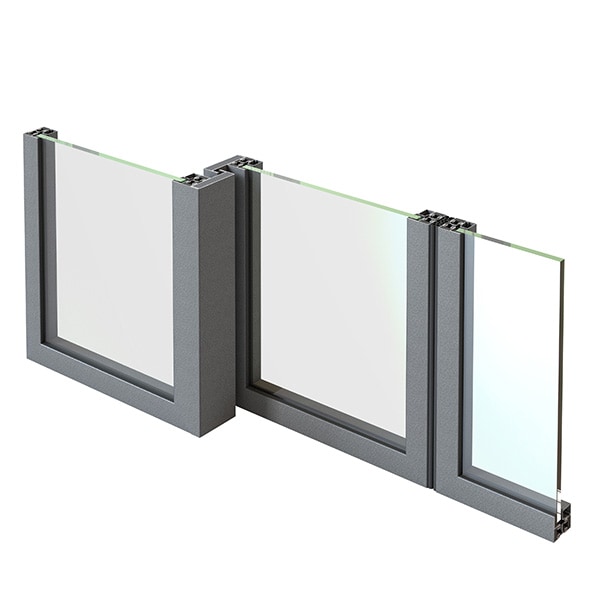

Janisol 2

The Janisol 2, single and double doors, with or without side panels and transom windows, fire protection system fulfils the requirements for safety and design freedom in buildings like no other system. The material properties of steel make it possible to create very strong and secure designs with extremely slender profiles. The result here is multifunctional doors and partition walls that satisfy the requirements of both the architect and the client. The performance of the system has been internationally confirmed in numerous fire tests in combination with many different makes of glass.

Features:

  • Connection to solid wall or lightweight wall construction
  • Central glazed panel
  • Dry glazing and glazing with putty
  • Door height up to 2.5 m with single-latch lock
  • Door height up to 3.0 m with single-latch lock and bi-metal lug or single-latch lock with top retracting bolt
  • Also available as anti-finger-trap door Janisol 2 EI30

Faq

What Test certificates does Janisol 2 has?
  • Fire resistance class EI30 tested in accordance with EN 1634-1 and DIN 4102-5
  • Smoke control in accordance with DIN 18095
  • Smoke control tested in accordance with EN 1634-3
  • Durability (C5) tested in accordance with EN 1191
  • Emergency exit door in accordance with EN 1125 / EN 179
  • Burglar resistance RC (WK) 1 to 3
  • Airborne sound insulation up to Rw 43 dB
WHAT Test certificates DO JANISOL WINDOWS HAVE?
  • CE marking in accordance with product standard EN 14351-1
    • Tightness against heavy rain up to class 8A
    • Air permeability up to class 4
    • Resistance to wind load up to class C4
    • Airborne sound insulation up to Rw 45 dB
    • Coefficient of thermal transmittance Uw > 1.3 W/m2K
  • Shear bonding in accordance with EN 14024
  • Burglar resistance in accordance with EN 1627 up to RC (WK) 3
  • Bullet resistance up to 6
  • TRAV
  • RWA / NRWG
